Down Tube Lithium Battery Hailong Electric Bicycle Battery 36V 48V 10Ah 14Ah
| Place of Origin | Guangdong，China |
|---|---|
| Brand Name | LTG |
| Certification | CE，UN38.3，MSDS Report |
| Model Number | Hailong |
| Minimum Order Quantity | 1 |
| Price | 83-190 |
| Packaging Details | Carton |
| Delivery Time | 10-15 work days |
| Payment Terms | T/T,D/P,L/C,Western Union |
| Supply Ability | 3000 sets per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Hailong Electric Battery Pack | Nominal Voltage | 36v/48v |
|---|---|---|---|
| Nominal Capacity | 10ah/14ah | Battery Type | 18650 |
| Cycle Life | 800-1000 Times | Battery Position | Down Tube |
| Color | Black | Warranty | 12 Months |
| OEM/ODM | Accepatable | ||
| Highlight | Hailong Electric Bicycle Battery 36V,Down Tube Lithium Battery,Lithium Battery 48V 10Ah |
||
Product Description

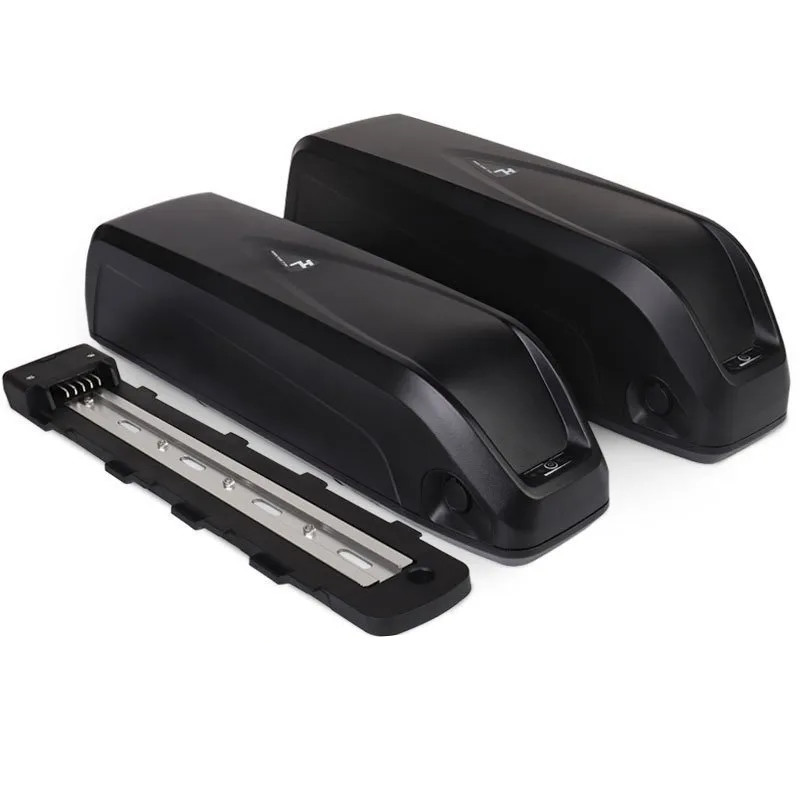

Down tube lithium battery 36V 48V 10Ah 14Ah Hailong electric bicycle battery
Hailong lithium battery product parameter table
| Product Name | hailong lithium battery |
| Cell Type | Ternary lithium battery |
| Charger current | 2-5A |
| Charging time | 3-8hours |
| Motor power | 1000-2000w |
| Cycle Life | 500-1000 times |
| Cell Li ion | 18650 2600mAh 3500mAh 3200mAh |
| Charge operating temperature | 0-45℃ |
| Discharge operating temperature | -10-60℃ |
Hailong Lithium Battery Details and Installation
Battery Charging Indicator Press the button and the indicator lights up
1 Red 3 Green --- 100% 1 Red 2 Green --- 75% 1 Red 1 Green --- 50% 1 Red 0 Green --- 25%
Safety Lock
Lock to lock the battery to the frame
Charging Socket
Insert the battery and the red light turns green when fully charged. Then complete the charging and unplug the charger.

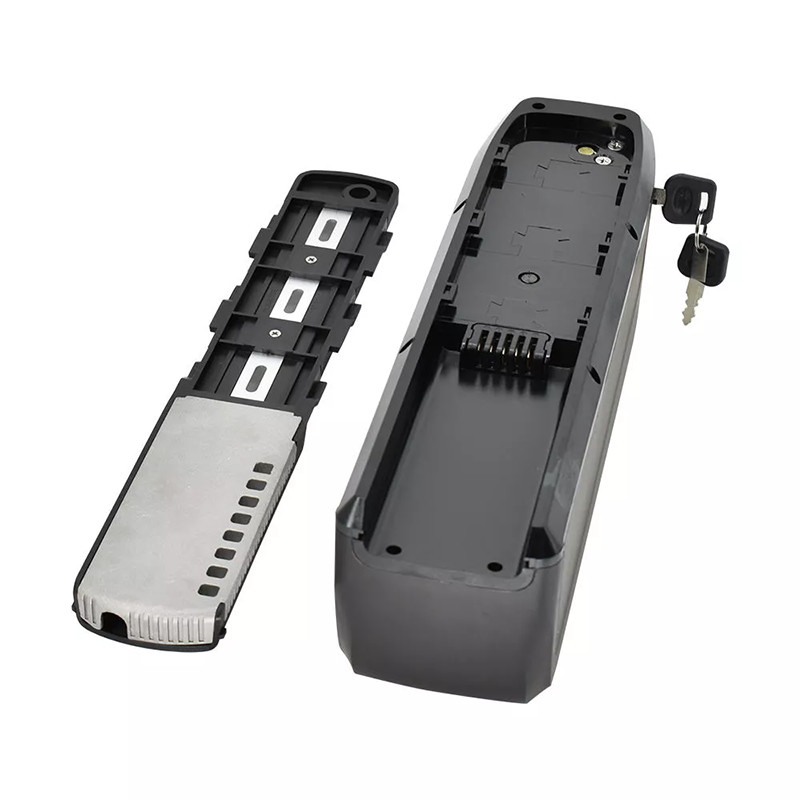

Battery Mounting Plate
We will install this plate on the battery when shipping. You can remove it with a key and install it to the bicycle frame with screws. Then put the battery on it.
Discharge Socket
Connect the discharge wire to the bicycle controller power cable. Red is the positive pole "+" and black is the negative pole "_"
Packaging and Shipping:
Product Packaging and Shipping of Hailong Electric Bike Batteries:
Hailong Electric Bike Batteries will be carefully packaged to ensure their safety during transportation. The batteries will be placed in a sturdy box with protective pads to prevent any damage. Each package will also contain appropriate warning labels and operating instructions.
For shipping, we use a reliable courier service to deliver the products to your designated place in a timely manner. You will receive a tracking number so that you can monitor the progress of your shipment. Please be sure to provide accurate shipping information to avoid any delays.
Steps
Install the battery holder to the bicycle with screws
Install the battery pack to the battery holder
Connect the battery converter to the bicycle controller.
Turn on the battery power and
Confirm whether the battery can work.
Please send us a photo of the previous battery shape, or you can also tell us the size of the battery.
The discharge port needs to be photographed to confirm the model
Make sure the voltage is consistent and the voltage is not mixed.
Check whether the battery body has a voltage mark. If
The battery body can confirm the voltage, buy it.
If the voltage cannot be confirmed. If the battery body has no label, please take a picture of the parameters on the back of the charger and send it to us, and our engineer will confirm it.
If the battery body has no label or is missing, and there is no charger. You need to check the controller and send us the controller parameters
